If you have a flat tire
What to do in an emergency / If you have a flat tire

WARNING

Changing a tire can be dangerous. Follow the instructions in this section when changing a tire to reduce the risk of serious injury or death.

Jack and tools

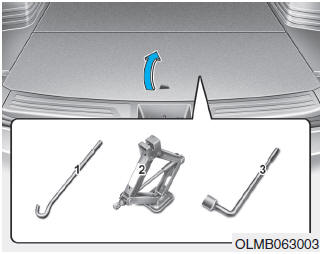

Hyundai Tucson: If you have a flat tire. ➀ Jack handle

➀ Jack handle

➁ Jack

➂ Wheel lug nut wrench

The jack, jack handle, and wheel lug nut wrench are stored in the luggage compartment under the luggage box cover.

The jack is provided for emergency tire changing only.

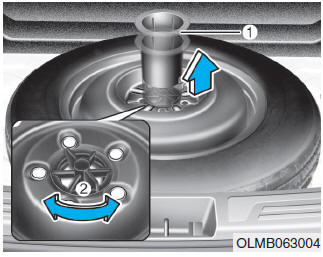

Hyundai Tucson: If you have a flat tire. Remove the luggage floor support (1) by pulling it out. Turn the winged hold

Remove the luggage floor support (1) by pulling it out. Turn the winged hold down bolt (2) counterclockwise to remove the spare tire.

Store the spare tire in the same compartment by turning the winged hold down bolt (2) clockwise. Insert the lock (1) in to secure the tire in place.

To prevent the spare tire and tools from “rattling,” store them in their proper location.

Changing tires

WARNING

A vehicle can slip or roll off of a jack causing serious injury or death to you or those nearby. Take the following safety precautions:

  • NEVER place any portion of your body under a vehicle that is supported by a jack.
  • NEVER attempt to change a tire in the lane of traffic. ALWAYS move the vehicle completely off the road on level, firm ground away from traffic before trying to change a tire. If you cannot find a level, firm place off the road, call a towing service for assistance.
  • Be sure to use the jack provided with the vehicle.
  • ALWAYS place the jack on the designated jacking positions on the vehicle and NEVER on the bumpers or any other part of the vehicle.
  • Do not start or run the engine while the vehicle is on the jack.
  • Do not allow anyone to remain in the vehicle while it is on the jack.
  • Keep children away from the road and the vehicle.

Follow these steps to change your vehicle’s tire:

1.Park on a level, firm surface.

2.Move the shift lever into P (Park), apply the parking brake, and place the ignition switch in the LOCK/OFF position.

3.Press the hazard warning flasher button.

4.Remove the wheel lug nut wrench, jack, jack handle, and spare tire from the vehicle.

5.Block both the front and rear of the tire diagonally opposite of the tire you are changing.

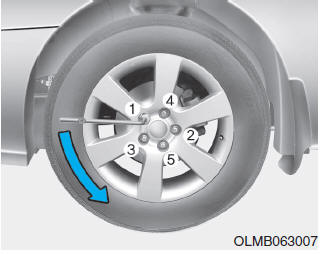

Hyundai Tucson: If you have a flat tire. 6.Loosen the wheel lug nuts counterclockwise one turn each in the order shown

6.Loosen the wheel lug nuts counterclockwise one turn each in the order shown above, but do not remove any lug nuts until the tire has been raised off of the ground.

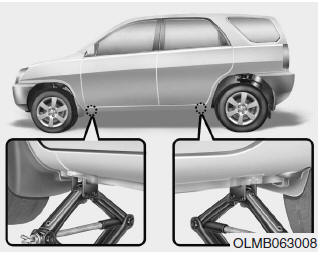

Hyundai Tucson: If you have a flat tire. 7.Place the jack at the designated jacking position under the frame closest to

7.Place the jack at the designated jacking position under the frame closest to the tire you are changing.

The jacking positions are plates welded to the frame with two tabs and a raised dot. Never jack any other position or part of the vehicle.

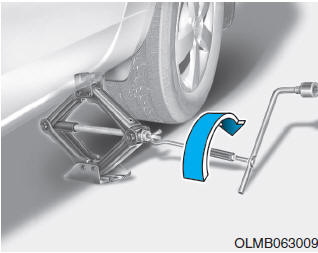

Hyundai Tucson: If you have a flat tire. 8.Insert the jack handle into the jack and turn it clockwise, raising the vehicle

8.Insert the jack handle into the jack and turn it clockwise, raising the vehicle until the tire clears the ground. Make sure the vehicle is stable on the jack.

9.Loosen the lug nuts with the wheel lug nut wrench and remove them with your fingers. Remove the wheel from the studs and lay it flat on the ground out of the way.

Remove any dirt or debris from the studs, mounting surfaces, and wheel.

10. Install the spare tire onto the studs of the hub.

11. Tighten the lug nuts with your fingers onto the studs with the smaller end of the lug nuts closest to the wheel.

12. Lower the vehicle to the ground by turning the jack handle counterclockwise.

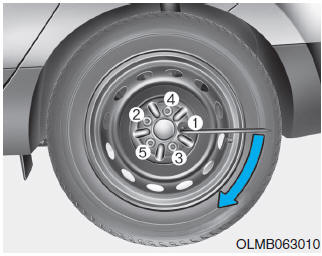

Hyundai Tucson: If you have a flat tire. 13. Use the wheel lug nut wrench to tighten the lug nuts in the order shown.

13. Use the wheel lug nut wrench to tighten the lug nuts in the order shown. Double-check each lug nut until they are tight. After changing tires, have an authorized HYUNDAI dealer tighten the lug nuts to their proper torque as soon as possible. The wheel lug nut should be tightened to 65~79 lb.ft (9~11 kg.m).

If you have a tire gauge, check the tire pressure (see “Tires and Wheels” in chapter 8 for tire pressure instructions.).

If the pressure is lower or higher than recommended, drive slowly to the nearest service station and adjust it to the recommended pressure. Always reinstall the valve cap after checking or adjusting tire pressure. If the cap is not replaced, air may leak from the tire. If you lose a valve cap, buy another and install it as soon as possible. After changing tires, secure the flat tire and return the jack and tools to their proper storage locations.

✽ NOTICE

Check the tire pressure as soon as possible after installing a spare tire. Adjust it to the recommended pressure.

CAUTION

Your vehicle has metric threads on the studs and lug nuts. Make certain during tire changing that the same nuts that were removed are reinstalled. If you have to replace your lug nuts make sure they have metric threads to avoid damaging the studs and ensure the wheel is properly secured to the hub. Consult an authorized HYUNDAI dealer for assistance.

If any of the equipment such as the jack, lug nuts, studs, or other equipment is damaged or in poor condition, do not attempt to change the tire and call for assistance.

Use of compact spare tires

Compact spare tires are designed for emergency use only. Drive carefully on the compact spare tire and always follow the safety precautions.

WARNING

To prevent compact spare tire failure and loss of control possibly resulting in an accident:

  • Use the compact spare tire only in an emergency.
  • NEVER operate your vehicle over 50 mph (80 km/h).
  • Do not exceed the vehicle’s maximum load rating or the load carrying capacity shown on the sidewall of the compact spare tire.
  • Do not use the compact spare tire continuously. Repair or replace the original tire as soon as possible to avoid failure of the compact spare tire.

When driving with the compact spare tire mounted to your vehicle:

  • Check the tire pressure after installing the compact spare tire. The compact spare tire should be inflated to 60 psi (420 kPa).
  • Do not take this vehicle through an automatic car wash while the compact spare tire is installed.
  • Do not use the compact spare tire on any other vehicle because this tire has been designed especially for your vehicle.
  • The compact spare tire’s tread life is shorter than a regular tire. Inspect your compact spare tire regularly and replace worn compact spare tires with the same size and design, mounted on the same wheel.
  • Do not use more than one compact spare tire at a time.
  • Do not tow a trailer while the compact spare tire is installed.

✽ NOTICE

When the original tire and wheel are repaired and reinstalled on the vehicle, the lug nut torque must be set correctly to prevent wheel vibration. The correct lug nut tightening torque is 65-79 lb.ft (9-11 kg.m).

CAUTION

To prevent damaging the compact spare tire and your vehicle:

  • Drive slowly enough for the road conditions to avoid all hazards, such as a potholes or debris.
  • Avoid driving over obstacles. The compact spare tire diameter is smaller than the diameter of a conventional tire and reduces the ground clearance approximately 1 in (25 mm).
  • Do not use tire chains on the compact spare tire. Because of the smaller size, a tire chain will not fit properly.
  • Do not use the compact spare tire on any other wheels, nor should standard tires, snow tires, wheel covers or trim rings be used with the compact spare wheel.
