Checking the parking brake
Maintenance / Parking brake / Checking the parking brake

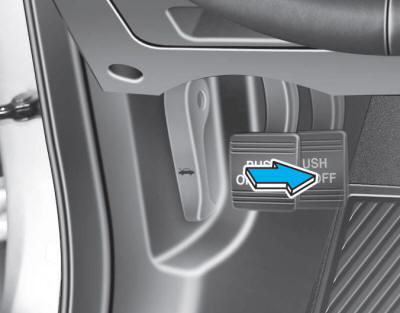

Foot type

Hyundai Tucson: Checking the parking brake. Check whether the stroke is within specification when the parking brake pedal

Check whether the stroke is within specification when the parking brake pedal is depressed with 44 lb (20 kg, 196 N) of force. Also, the parking brake alone should securely hold the vehicle on a fairly steep grade. If the stroke is more or less than specified, have the parking brake adjusted by an authorized HYUNDAI dealer.

Stroke : 4 notch at a force of 44 lbs (20 kg, 196 N)

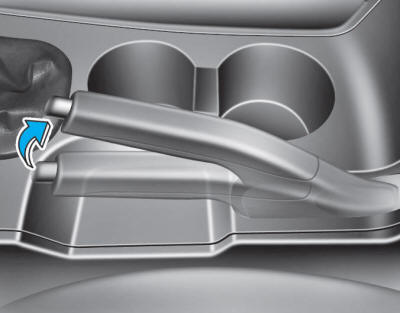

Hand type

Hyundai Tucson: Checking the parking brake. Check the stroke of the parking brake by counting the number of УclicksТТ heard

Check the stroke of the parking brake by counting the number of УclicksТТ heard while fully applying it from the released position. Also, the parking brake alone should securely hold the vehicle on a fairly steep grade. If the stroke is more or less than specified, have the parking brake adjusted by an authorized HYUNDAI dealer.

Stroke : 6 clicks at a force of 44 lbs (20 kg, 196 N)
