Climate control air cleaner
Maintenance / Climate control air cleaner

Filter inspection

The climate control air filter should be replaced according to the Maintenance Schedule. If the vehicle is operated in severely air-polluted cities or on dusty rough roads for a long period, it should be inspected more frequently and replaced earlier.

When you replace the climate control air filter, replace it performing the following procedure, and be careful to avoid damaging other components.

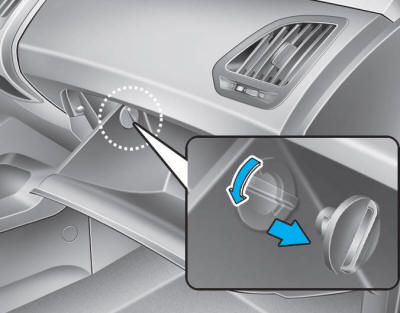

Hyundai Tucson: Climate control air cleaner. 1. With the glove box open, remove the stoppers on both sides to allow the glove

1. With the glove box open, remove the stoppers on both sides to allow the glove box to hang freely on the hinges.

Hyundai Tucson: Climate control air cleaner. 2. Remove the support rod.

2. Remove the support rod.

Hyundai Tucson: Climate control air cleaner. 3. Remove the climate control air filter case by pulling out both sides

3. Remove the climate control air filter case by pulling out both sides of the cover.

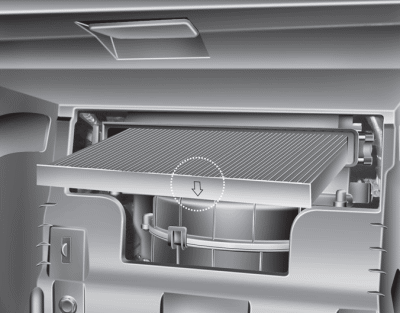

Hyundai Tucson: Climate control air cleaner. 4. Replace the climate control air filter.

4. Replace the climate control air filter.

5. Reassemble in the reverse order of disassembly.

✽ NOTICE

When replacing the climate control air filter install it properly. Otherwise, the system may produce noise and the effectiveness of the filter may be reduced.
