Wiper blades
Maintenance / Wiper blades

Blade inspection

Hyundai Tucson: Wiper blades. Contamination of either the windshield or the wiper blades with foreign matter

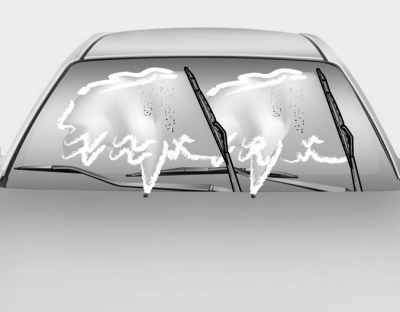

Contamination of either the windshield or the wiper blades with foreign matter can reduce the effectiveness of the windshield wipers.

Common sources of contamination are insects, tree sap, and hot wax treatments used by some commercial car washes. If the blades are not wiping properly, clean both the window and the blades with a clean cloth dampened with washer fluid.

CAUTION

To prevent damage to the wiper blades, arms or other components, do not:

  • Use gasoline, kerosene, paint thinner, or other solvents on or near them.
  • Attempt to move the wipers manually.
  • Use non-specified wiper blades.

✽ NOTICE

Commercial hot waxes applied by automatic car washes have been known to make the windshield difficult to clean.

Blade replacement

Front windshield wiper blade

Hyundai Tucson: Wiper blades. ■ Type A

■ Type A

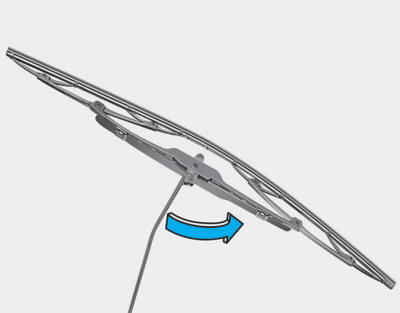

1. Raise the wiper arm and slightly rotate the wiper blade assembly to expose the plastic locking clip.

CAUTION

Do not allow the wiper arm to fall against the windshield, since it may chip or crack the windshield.

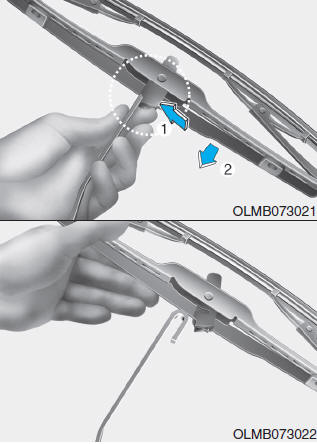

Hyundai Tucson: Wiper blades. 2. Press the clip (1) and slide the blade assembly downward (2).

2. Press the clip (1) and slide the blade assembly downward (2).

3. Lift it off the arm.

4. Install the blade assembly in the reverse order of removal.

5. Return the wiper arm on the windshield.

Hyundai Tucson: Wiper blades. ■ Type B

■ Type B

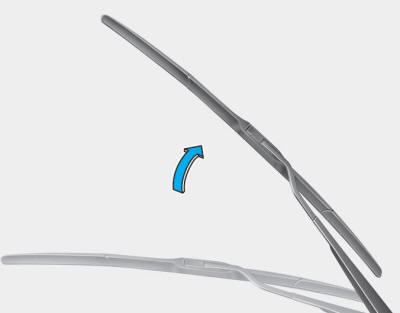

1. Raise the wiper arm.

CAUTION

Do not allow the wiper arm to fall against the windshield, since it may chip or crack the windshield.

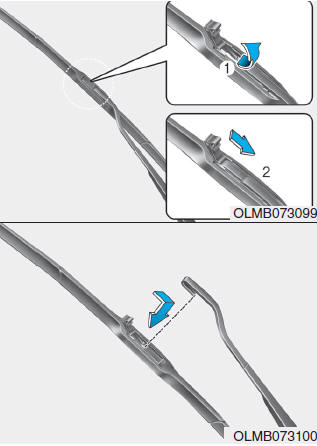

Hyundai Tucson: Wiper blades. 2. Lift up the wiper blade clip (1). Then pull down the blade assembly (2) and

2. Lift up the wiper blade clip (1). Then pull down the blade assembly (2) and remove it.

3. Install the new blade assembly in the reverse order of removal.

4. Return the wiper arm on the windshield.

Rear windshield wiper blade

Hyundai Tucson: Wiper blades. 1. Raise the wiper arm.

1. Raise the wiper arm.

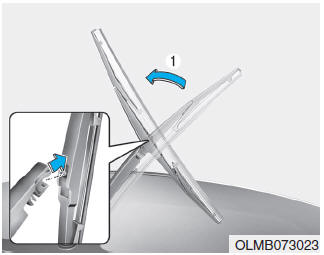

2. Slightly rotate the wiper blade (1) assembly and pull it out.

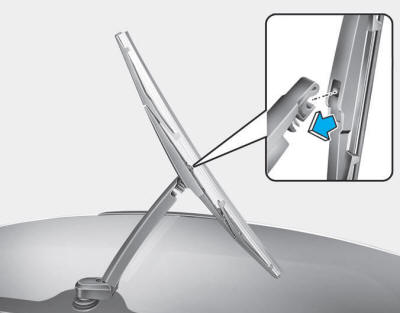

Hyundai Tucson: Wiper blades. 3. Install the new blade assembly by inserting the center part into the slot

3. Install the new blade assembly by inserting the center part into the slot on the wiper

4. Make sure the blade assembly is installed firmly by trying to pull it slightly.

CAUTION

To prevent damage to the wiper arms or other components, have an authorized HYUNDAI dealer replace the wiper blade.
