Hyundai Tucson: Fuses. A vehicles electrical system is protected from electrical overload damage by

A vehicles electrical system is protected from electrical overload damage by fuses.

This vehicle has 2 (or 3) fuse panels, one located in the drivers side panel bolster, the other in the engine compartment near the battery.

If any of your vehicles lights, accessories, or controls do not work, check the appropriate circuit fuse. If a fuse has blown, the element inside the fuse will be melted or broken.

If the electrical system does not work, first check the drivers side fuse panel. Before replacing a blown fuse, disconnect the negative battery cable. Always replace a blown fuse with one of the same rating.

If the replacement fuse blows, this indicates an electrical problem. Avoid using the system involved and immediately consult an authorized HYUNDAI dealer.

✽ NOTICE

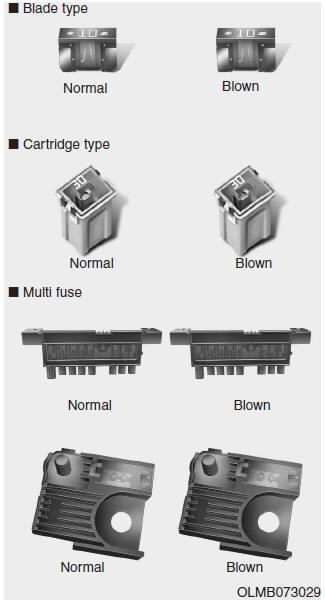

Three kinds of fuses are used: blade type for lower amperage rating, cartridge type, and fusible link for higher amperage ratings.

WARNING

NEVER replace a fuse with anything but another fuse of the same rating.

  • A higher capacity fuse could cause damage and possibly a fire.
  • Do not install a wire or aluminum foil instead of the proper fuse - even as a temporary repair. It may cause extensive wiring damage and possibly a fire.

CAUTION

Do not use a screwdriver or any other metal object to remove fuses because it may cause a short circuit and damage the system.

Instrument panel fuse replacement

Hyundai Tucson: Fuses. 1. Turn the engine off.

1. Turn the engine off.

2. Turn all other switches OFF.

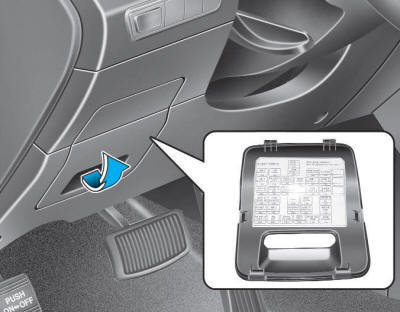

3. Open the fuse panel cover.

4. Refer to the label on the inside of the fuse panel cover to locate the suspected fuse location

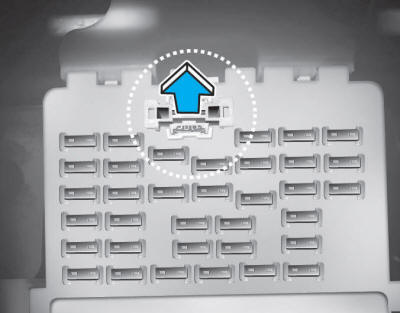

Hyundai Tucson: Fuses. 5. Pull the suspected fuse straight out. Use the removal tool provided in the

5. Pull the suspected fuse straight out. Use the removal tool provided in the engine compartment fuses panel.

6. Remove and check the suspected fuse; replace it if it is blown. Spare fuses are provided in the instrument panel fuse panels (or in the engine compartment fuse panel).

7. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized HYUNDAI dealer.

In an emergency, if you do not have a spare fuse, use a fuse of the same rating from a circuit you may not need for operating the vehicle, such as the cigarette lighter fuse.

If the headlights or other electrical components do not work and the fuses are OK, check the fuse panel in the engine compartment. If a fuse is blown, it must be replaced.

Memory fuse (SHUNT connector)

Hyundai Tucson: Fuses. Your vehicle is equipped with a memory fuse (SHUNT connector) to prevent battery

Your vehicle is equipped with a memory fuse (SHUNT connector) to prevent battery discharge if your vehicle is parked without being operated for prolonged periods. Use the following procedures before parking the vehicle for prolonged periods.

1. Turn off the engine.

2. Turn off the headlights and parking lights.

3. Open the driver's side panel cover and pull out the memory fuse (SHUNT connector).

✽ NOTICE

  • If the memory fuse is pulled up from the fuse panel, the warning chime, audio, clock and interior lamps, etc., will not operate. Some items must be reset after replacement. Refer to "Battery" in this chapter.
  • Even though the memory fuse is pulled up, the battery can still be discharged by operation of the headlights or other electrical devices.

Engine compartment panel fuse replacement

Hyundai Tucson: Fuses. 1. Turn the engine off.

1. Turn the engine off.

2. Turn all other switches OFF.

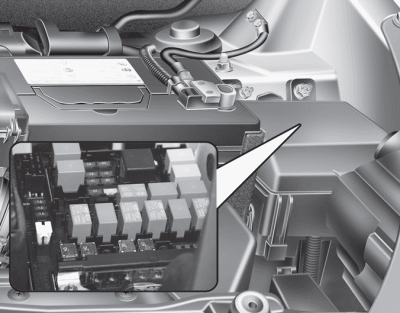

3. Remove the fuse panel cover by pressing the tap and pulling up.

4. Remove and check the suspected fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.

5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized HYUNDAI dealer.

Main fuse

Hyundai Tucson: Fuses. If the main fuse is blown, it must be removed as follows:

If the main fuse is blown, it must be removed as follows:

1. Turn off the engine.

2. Disconnect the negative battery cable.

3. Remove the fuse panel cover by pressing the tap and pulling it up.

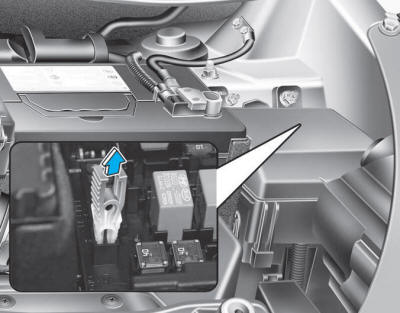

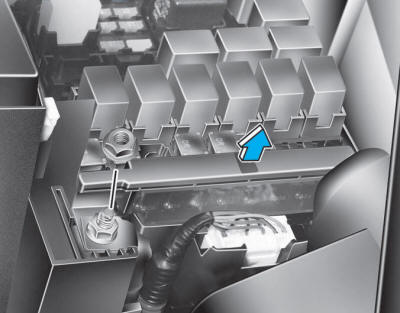

4. Remove the nuts shown in the picture above.

5. Replace the fuse with a new one of the same rating.

6. Reinstall in the reverse order of removal.

✽ NOTICE

If the main fuse is blown, consult an authorized HYUNDAI dealer.

Multi fuse

Hyundai Tucson: Fuses. If the multi fuse is blown, it must be removed as follows:

If the multi fuse is blown, it must be removed as follows:

1. Turn off the engine.

2. Disconnect the negative battery cable.

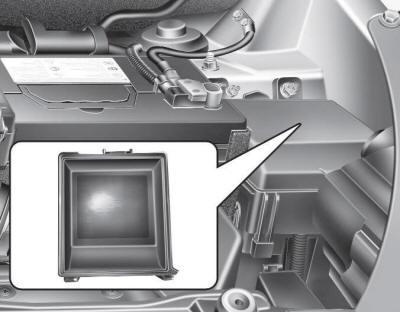

3. Remove the fuse panel cover by pressing the tap and pulling up.

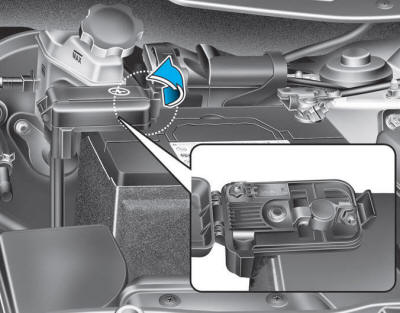

4. Remove the bolts shown in the picture above.

5. Replace the fuse with a new one of the same rating.

6. Reinstall in the reverse order of removal.

✽ NOTICE

If the multi fuse is blown, consult an authorized HYUNDAI dealer.

Fuse/Relay panel description

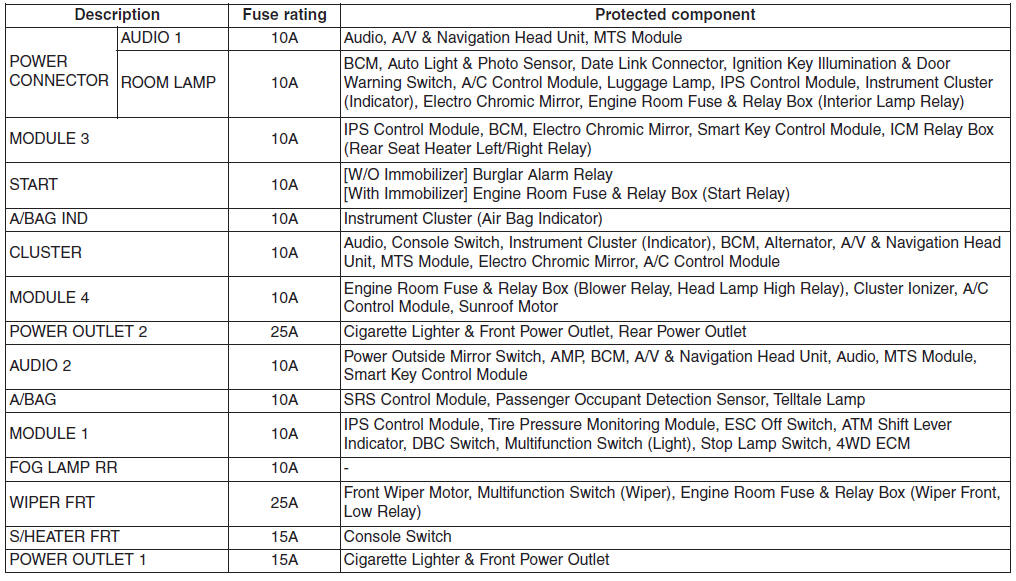

Instrument panel fuse panel

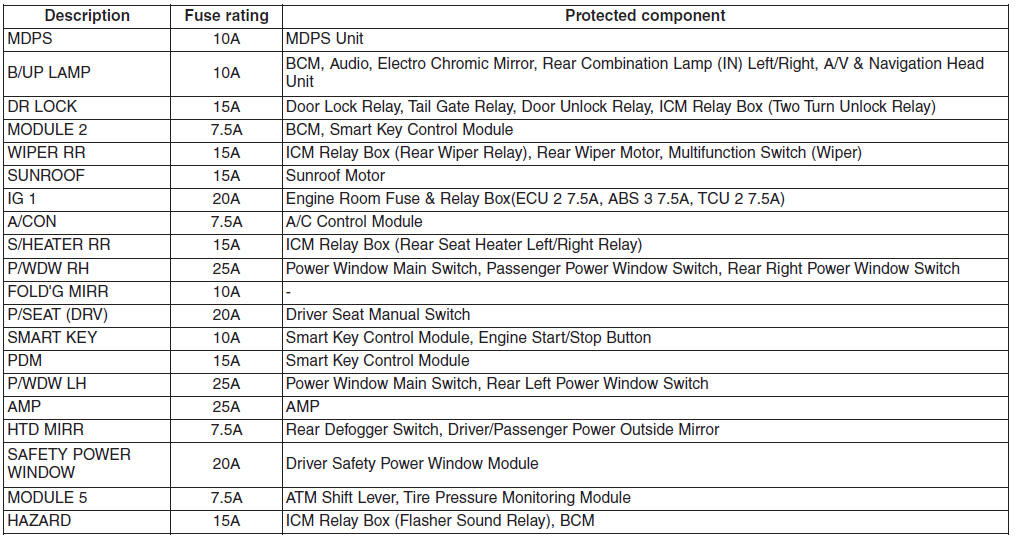

Hyundai Tucson: Fuses. Inside the fuse/relay box cover, you can find the fuse/relay label describing

Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/relay name and capacity.

NOTICE

Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label.

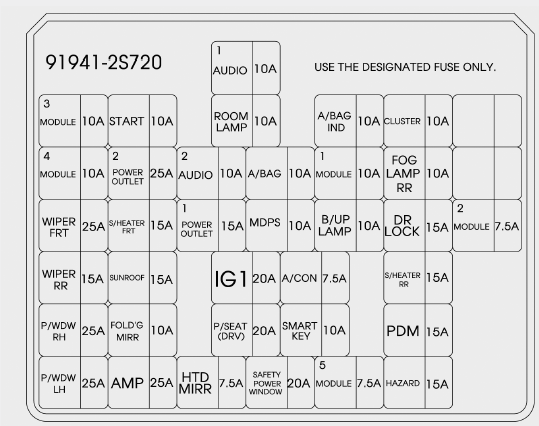

Hyundai Tucson: Fuses. Instrument panel fuse panel

Instrument panel fuse panel

Hyundai Tucson: Fuses.

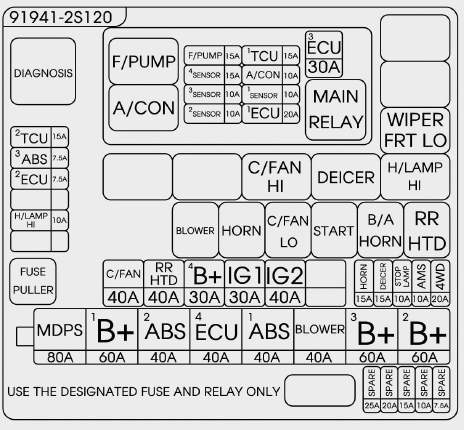

Hyundai Tucson: Fuses. Engine compartment fuse panel

Engine compartment fuse panel

Hyundai Tucson: Fuses. Inside the fuse/relay box cover, you can find the fuse/relay label describing

Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/relay name and capacity.

✽ NOTICE

Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

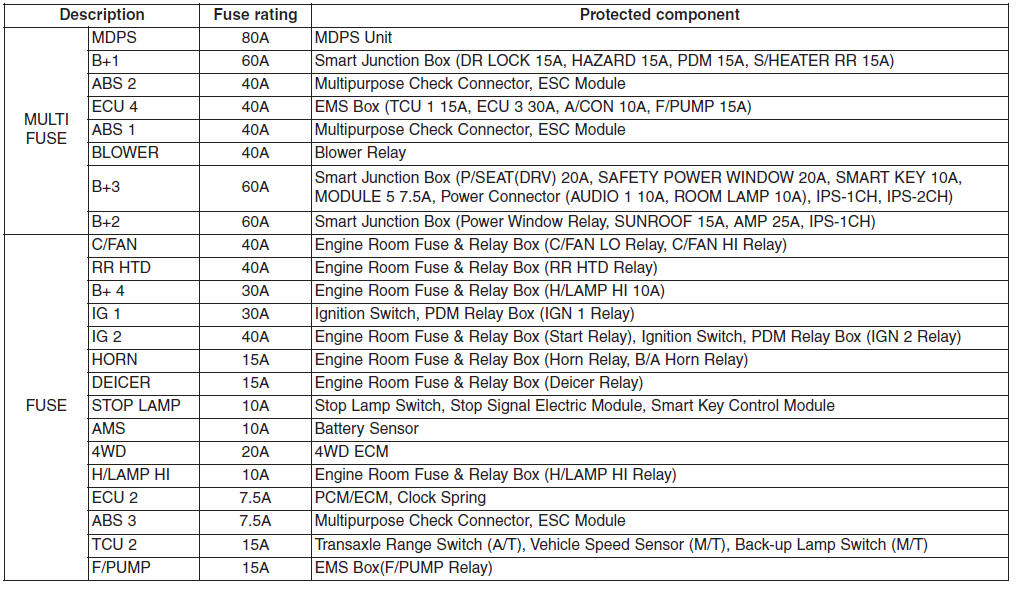

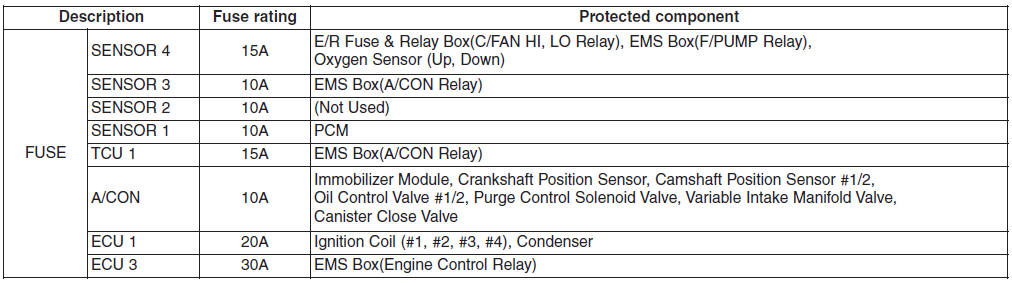

Hyundai Tucson: Fuses. Engine compartment main fuse panel

Engine compartment main fuse panel

Hyundai Tucson: Fuses.
