High mounted stop light
Maintenance / Light bulbs / High mounted stop light

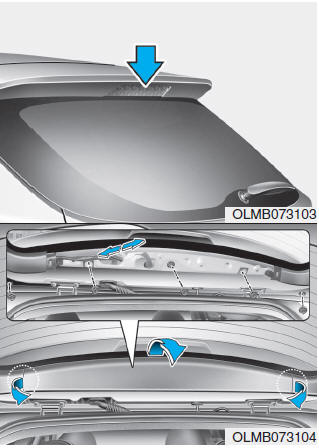

Hyundai Tucson: High mounted stop light. 1. Open the tailgate.

1. Open the tailgate.

2. Gently remove the center cover of the rear tailgate trim.

3. Disconnect the electrical connector.

Hyundai Tucson: High mounted stop light. 4. Loosen the retaining nuts and remove the spoiler.

4. Loosen the retaining nuts and remove the spoiler.

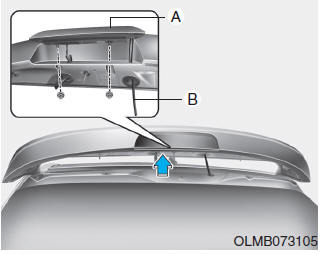

5. Remove the high mounted stop light assembly (A) after loosening the nuts and washer nozzle (B).

6. Reinstall a new light assembly in the reverse order of removal.

License plate light bulb replacement

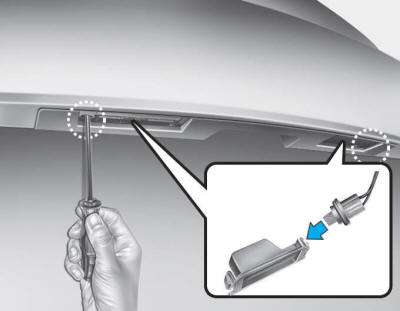

Hyundai Tucson: High mounted stop light. 1. Loosen the lens retaining screws with a philips head screwdriver.

1. Loosen the lens retaining screws with a philips head screwdriver.

2. Remove the lens.

3. Remove the bulb by pulling it straight out.

4. Install a new bulb.

5. Reinstall the lens securely with the lens retaining screws.

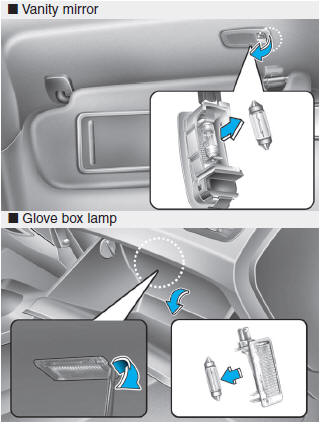

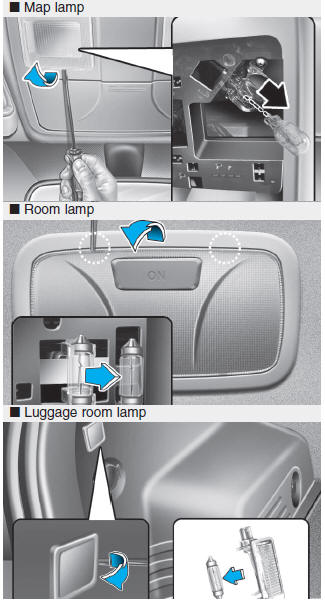

Interior light bulb replacement

Hyundai Tucson: High mounted stop light.

Hyundai Tucson: High mounted stop light. 1. Using a flat-blade screwdriver, gently pry the lens from the interior lamp

1. Using a flat-blade screwdriver, gently pry the lens from the interior lamp housing.

2. Remove the bulb by pulling it straight out.

3. Install a new bulb in the socket.

4. Align the lens tabs with the interior lamp housing notches and snap the lens into place.

WARNING

Use care not to dirty or damage lenses, lens tabs, and plastic housings.
