Instrument cluster
Convenient features of your vehicle / Instrument cluster

Hyundai Tucson: Instrument cluster. 1. Tachometer

1. Tachometer
2. Turn signal indicators
3. Speedometer
4. Engine temperature gauge
5. Shift position indicator
6. Fuel gauge
7. Odometer/Trip computer
8.Warning and indicator lights

Instrument Cluster Control

Adjusting Instrument Cluster Illumination

Hyundai Tucson: Instrument cluster. When the vehicle's parking lights or headlights are on, press the illumination

When the vehicle's parking lights or headlights are on, press the illumination control button to adjust the brightness of the instrument panel illumination.

Hyundai Tucson: Instrument cluster.

  • The brightness of the instrument panel illumination is displayed.
  • If the brightness reaches to the maximum or minimum level, an alarm will sound.

Gauges

Speedometer

Hyundai Tucson: Instrument cluster. The speedometer indicates the speed of the vehicle and is calibrated in miles

The speedometer indicates the speed of the vehicle and is calibrated in miles per hour (mph) and/or kilometers per hour (km/h).

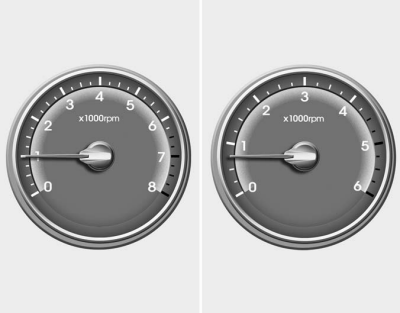

Tachometer

Hyundai Tucson: Instrument cluster. The tachometer indicates the approximate number of engine revolutions per minute

The tachometer indicates the approximate number of engine revolutions per minute (rpm).

Use the tachometer to select the correct shift points and to prevent lugging and/or over-revving the engine

CAUTION

Do not operate the engine within the tachometer's RED ZONE. This may cause severe engine damage.

Engine Coolant Temperature Gauge

Hyundai Tucson: Instrument cluster. This gauge indicates the temperature of the engine coolant when the ignition

This gauge indicates the temperature of the engine coolant when the ignition switch or Engine Start/Stop button is ON.

CAUTION

If the gauge pointer moves beyond the normal range area toward the "H" position, it indicates overheating that may damage the engine. Do not continue driving with an overheated engine.

WARNING

Never remove the radiator cap when the engine is hot. The engine coolant is under pressure and could severely burn. Wait until the engine is cool before adding coolant to the reservoir.

Fuel Gauge

Hyundai Tucson: Instrument cluster. This gauge indicates the approximate amount of fuel remaining in the fuel tank.

This gauge indicates the approximate amount of fuel remaining in the fuel tank.

✽ NOTICE

  • The fuel tank capacity is given in chapter 8.
  • The fuel gauge is supplemented by a low fuel warning light, which will illuminate when the fuel tank is nearly empty.
  • On inclines or curves, the fuel gauge pointer may fluctuate or the low fuel warning light may come on earlier than usual due to the movement of fuel in the tank.

WARNING

Running out of fuel can expose vehicle occupants to danger. You must stop and obtain additional fuel as soon as possible after the warning light comes on or when the gauge indicator comes close to the "E (Empty)" level.

CAUTION

Avoid driving with an extremely low fuel level. Running out of fuel could cause the engine to misfire, damaging the catalytic converter.

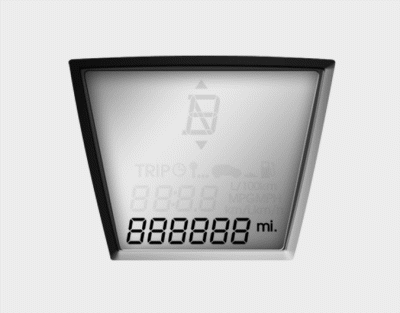

Odometer

Hyundai Tucson: Instrument cluster. The odometer Indicates the total distance that the vehicle has been driven and

The odometer Indicates the total distance that the vehicle has been driven and should be used to determine when periodic maintenance should be performed.

- Odometer range : 0 ~ 999999 miles or kilometers.

Transaxle Shift Indicator Automatic Transaxle

Shift Indicator

Hyundai Tucson: Instrument cluster. This indicator displays which automatic transaxle gear is selected.

This indicator displays which automatic transaxle gear is selected.

  • Park :P
  • Reverse : R
  • Neutral : N
  • Drive :D
  • Sports Mode : 1, 2, 3, 4, 5, 6
