Windows
Convenient features of your vehicle / Windows

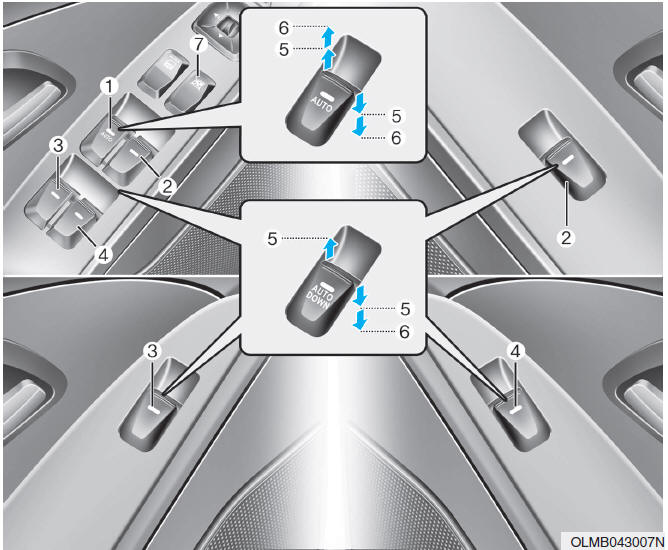

Hyundai Tucson: Windows. (1) Drivers door power window switch

(1) Drivers door power window switch
(2) Front passengers door power window switch
(3) Rear door (left) power window switch
(4) Rear door (right) power window switch
(5) Window opening and closing
(6) Automatic power window up/down
(7) Power window lock switch

Power windows

The ignition switch must be in the ON position to be able to raise or lower the windows.

Each door has a Power Window switch to control that door's window.

The driver has a Power Window Lock switch which can block the operation of passenger windows. The power windows will operate for approximately 30 seconds after the ignition switch is placed in the ACC or LOCK/OFF position. However, if the front doors are opened, the Power Windows cannot be operated even within the 30 second period.

WARNING

To avoid serious injury or death, do not extend your head, arms or body outside the windows while driving.

Window opening and closing

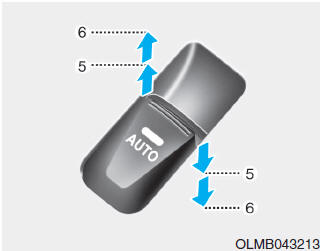

Hyundai Tucson: Windows. To open:

To open:

Press the window switch down to the first detent position (5). Release the switch when you want the window to stop.

To close:

Pull the window switch up to the first detent position (5). Release the window switch when you want the window to stop.

Auto up/down window

Pressing or pulling up the power window switch momentarily to the second detent position (6) completely lowers or raises the window even when the switch is released. To stop the window at the desired position while the window is in operation, pull up or press down and release the switch.

To reset the power windows

If the power windows do not operate normally, the automatic power window system must be reset as follows:

1. Place the ignition switch to the ON position.

2. Close the windows and continue pulling up on the power window switch for at least one second.

If the power windows do not operate properly after resetting, have the system checked by an authorized HYUNDAI dealer.

Automatic reverse

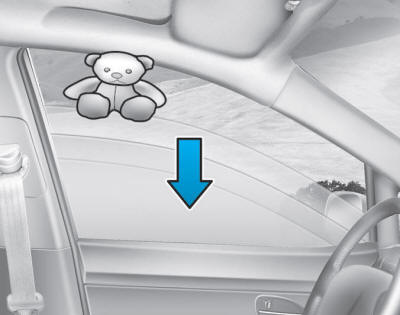

Hyundai Tucson: Windows. If a window senses any obstacle while it is closing automatically, it will stop

If a window senses any obstacle while it is closing automatically, it will stop and lower approximately 12 inch (30 cm) to allow the object to be cleared.

If the window detects the resistance while the power window switch is pulled up continuously, the window will stop upward movement then lower approximately 1 inch (2.5 cm).

If the power window switch is pulled up continuously again within five seconds after the window is lowered by the automatic window reversal feature, the automatic window reversal will not operate.

✽ NOTICE

The automatic reverse feature is only active when the auto up feature is used by fully pulling up the switch to the second detent.

WARNING

Make sure heads, other body parts or other objects are safely out of the way before closing the windows to avoid injuries or vehicle damage. Objects less than 0.16 inch (4 mm) in diameter caught between the window glass and the upper window channel may not be detected by the automatic reverse window and the window will not stop and reverse direction.

Power window lock button

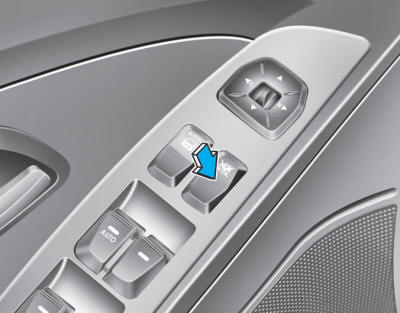

Hyundai Tucson: Windows. The driver can disable the power window switches on the passengers doors by

The driver can disable the power window switches on the passengers doors by pressing the power window lock switch.

  • The drivers control can operate the drivers power window.
  • The front passengers control cannot operate the front passengers power window.
  • The rear passengers control cannot operate the rear passengers power window.

WARNING

Do not allow children to play with the power windows. Keep the drivers door power window lock switch in the LOCK position (indicator illuminating). Serious injury or death can result from unintentional window operation by a child.

CAUTION

  • To prevent possible damage to the power window system, do not open or close two windows or more at the same time. This will also ensure the longevity of the fuse.
  • Never try to operate the main switch on the driver's door and the individual door window switch in opposing directions at the same time. If this is done, the window will stop and cannot be opened or closed.
