Panoramic sunroof
Convenient features of your vehicle / Panoramic sunroof

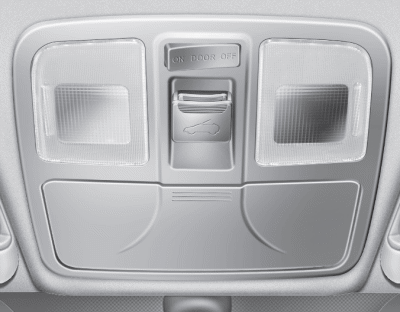

Hyundai Tucson: Panoramic sunroof. The ignition switch must be in the ON position before you can open or close the

The ignition switch must be in the ON position before you can open or close the sunroof.

Sunroof opening and closing

To open:

Press the sunroof control lever backward to the first detent position.

Release the switch when you want the sunroof to stop.

To close:

Press the sunroof control lever backward to the first detent position.

Release the switch when you want the sunroof to stop.

WARNING

Make sure heads, other body parts or other objects are safely out of the way before closing the windows to avoid injuries or vehicle damage. Objects less than 0.16inch (4mm) in diameter caught between the sunroof glass and the front window channel may not be detected by the automatic reverse window and the window will not stop and reverse direction.

Sliding the sunroof

Pressing the sunroof control lever backward or forward momentarily to the second detent position completely opens or closes the sunroof even when the switch is released. To stop the sunroof at the desired position while the sunroof is in operation, press the sunroof control lever backward or forward and release the switch.

Automatic Reverse

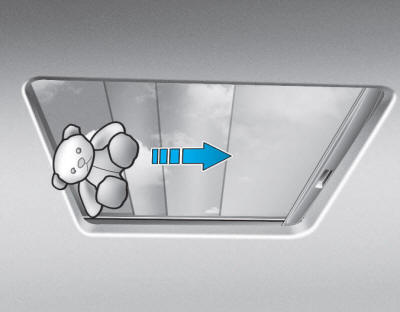

Hyundai Tucson: Panoramic sunroof. If the sunroof senses any obstacle while it is closing automatically, it will

If the sunroof senses any obstacle while it is closing automatically, it will reverse direction then stop to allow the object to be cleared.

Tilting the Sunroof

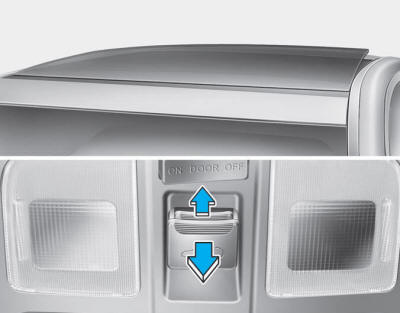

Hyundai Tucson: Panoramic sunroof. Open the roller blind before opening and closing the sunroof.

Open the roller blind before opening and closing the sunroof.

To tilt the sunroof open:

Push the sunroof control lever upward until the sunroof moves to the desired position.

To close the sunroof:

Pull the sunroof lever downward until the sunroof moves to the desired position.

WARNING

  • Make sure heads, other body parts or other objects are safely out of the way before closing the sunroof to avoid injuries or vehicle damage.
  • Never adjust the sunroof or roller blind while driving. This may cause loss of vehicle control resulting in an accident.
  • To avoid serious injury or death, do not extend your head, arms or body outside the sunroof while driving.

✽ NOTICE

After washing the vehicle or after a rain, be sure to wipe off the water on the sunroof before operating the sunroof.

CAUTION

  • Periodically remove any dirt that may accumulate on the sunroof guide rail or between the sunroof and roof panel, which can make a noise.
  • Do not try to open the sunroof when the temperature is below freezing or when the sunroof is covered with snow or ice, the motor could be damaged. In cold and wet climates, the sunroof may not work properly.
  • To prevent damage to the sunroof and the motor, do not continue to press the sunroof control lever after the sunroof is in the fully open, closed or tilt position(s).

To reset the sunroof

If the battery has been discharged or disconnected, or if the related fuse has been replaced or disconnected, reset the Sunroof as follows:

1. The ignition switch must be in the ON position.

2. Open the roller blind.

3. Close the sunroof completely.

4. Release the control lever.

5. Push the control lever forward until the sunroof tilts and slightly moves up and down. Then, release the lever.

6. Push the control lever forward until the sunroof is operated as follows:

TILT OPEN → SLIDE OPEN → SLIDE CLOSE

Then, release the control lever.

If the sunroof does not operate properly after resetting, have the system checked by an authorized HYUNDAI dealer.

Sunroof open warming

Hyundai Tucson: Panoramic sunroof. If the driver removes the ignition key (Smart key : turns off the engine) and

If the driver removes the ignition key (Smart key : turns off the engine) and opens the driver’s side door when the sunroof is not fully closed, the warning chime will sound for approximately 7 seconds and

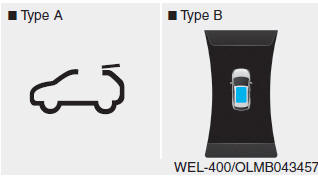

Type A :

Sunroof Open Warning Light will illuminate or blink for approximately 7 seconds.

Type B :

Sunroof Open image will appear on the LCD display. Close the sunroof securely when leaving your vehicle.

Roller blind

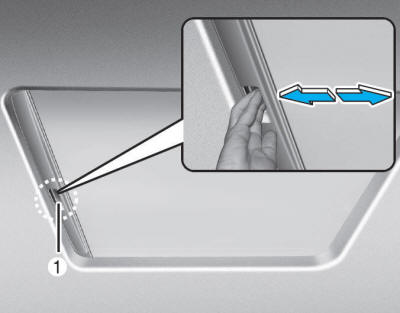

Hyundai Tucson: Panoramic sunroof. Open and close the roller blind manually using the handle (1).

Open and close the roller blind manually using the handle (1).

Always open the roller blind before opening or closing the sunroof.

CAUTION

Use the handle when opening and closing the roller blind. If the handle is not used, it may cause misalignment or damage.

✽ NOTICE

You may see wrinkles on the roller blind. It is normal because of its material characteristic.
