AUTO control (if equipped)
Convenient features of your vehicle / Wipers and washers / AUTO control (if equipped)

Hyundai Tucson: <b>AUTO control (if equipped)</b>. The rain sensor located on the upper end of the windshield glass senses the amount

The rain sensor located on the upper end of the windshield glass senses the amount of rainfall and controls the wiping cycle for the proper interval.

The more it rains, the faster the wiper operates. When the rain stops, the wiper stops. To vary the speed setting, turn the speed control knob (1). If the wiper switch is set in AUTO mode when ignition switch is in the ON position, the wiper will operate once to perform a self-check of the system. Set the wiper to OFF position when the wiper is not in use.

WARNING

To avoid personal injury from the windshield wipers, when the engine is running and the windshield wiper switch is placed in the AUTO mode:

  • Do not touch the upper end of the windshield glass facing the rain sensor.
  • Do not wipe the upper end of the windshield glass with a damp or wet cloth.
  • Do not put pressure on the windshield glass.

CAUTION

  • When washing the vehicle, set the wiper switch to the OFF position to stop the auto wiper operation.The wiper may operate and be damaged if the switch is set in the AUTO mode while washing the vehicle.
  • Do not remove the sensor cover located on the upper end of the passenger side windshield glass. Damage to system parts could occur.

Front windshield washers

Hyundai Tucson: <b>AUTO control (if equipped)</b>. In the OFF position, pull the lever gently toward you to spray washer fluid on

In the OFF position, pull the lever gently toward you to spray washer fluid on the windshield and to run the wipers 1- 3 cycles.

The spray and wiper operation will continue until you release the lever. If the washer does not work, you may need to add washer fluid to the washer fluid reservoir.

WARNING

When the outside temperature is below freezing, ALWAYS warm the windshield using the defroster to prevent the washer fluid from freezing on the windshield and obscuring your vision which could result in an accident and serious injury or death.

CAUTION

  • To prevent possible damage to the washer pump, do not operate the washer when the fluid reservoir is empty.
  • To prevent damage to the wiper arms and other components, do not attempt to move the wipers manually or operate the wipers when the windshield is dry.

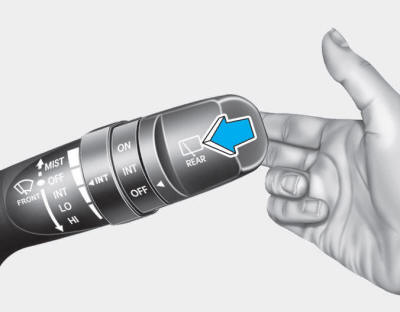

Rear window wiper and washer

Hyundai Tucson: <b>AUTO control (if equipped)</b>. The rear window wiper and washer switch is located at the end of the wiper and

The rear window wiper and washer switch is located at the end of the wiper and washer switch lever. Turn the switch to the desired position to operate the rear wiper and washer.

ON - Normal wiper operation

INT - Intermittent wiper operation (if equipped)

OFF - Wiper is not in operation

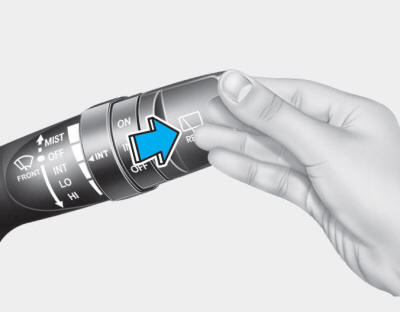

Hyundai Tucson: <b>AUTO control (if equipped)</b>. Push the lever away from you to spray rear washer fluid and to run the rear wipers

Push the lever away from you to spray rear washer fluid and to run the rear wipers 1~3 cycles. The spray and wiper operation will continue until you release the lever.
