Manual climate control system
Convenient features of your vehicle / Manual climate control system

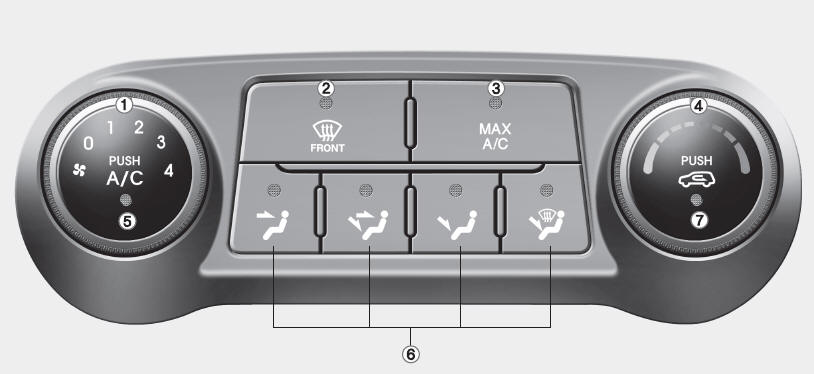

Hyundai Tucson: Manual climate control system. 1. Fan speed control knob

1. Fan speed control knob
2. Front windshield defroster button
3. MAX A/C mode button
4. Temperature control knob
5. Air conditioning button
6. Mode selection button
7. Air intake control button

Heating and air conditioning

1. Start the engine.

2. Set the mode to the desired position.

To improve the effectiveness of heating and cooling;

- Heating: Hyundai Tucson: Manual climate control system. - Cooling:

- Cooling: Hyundai Tucson: Manual climate control system. 3. Set the temperature control to the desired position.

3. Set the temperature control to the desired position.

4. Set the air intake control to the outside (fresh) air position.

5. Set the fan speed control to the desired speed.

6. If air conditioning is desired, turn the air conditioning system on.

Hyundai Tucson: Manual climate control system. Mode selection

Mode selection

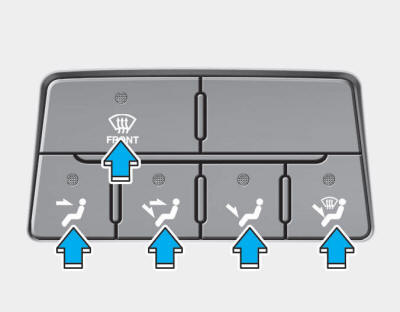

Hyundai Tucson: Manual climate control system. The mode selection button controls the direction of the air flow through the

The mode selection button controls the direction of the air flow through the ventilation system.

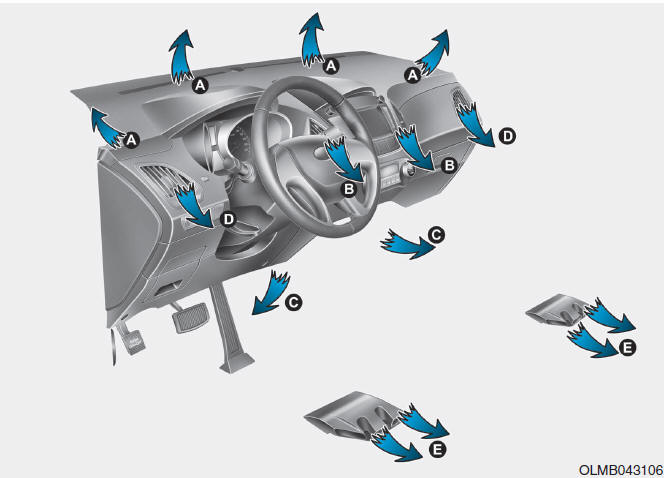

Air can be directed to the floor, dashboard outlets, or windshield. Six symbols are used to represent the direction and flow of ventilation: MAX A/C, Face, Bi-Level, Floor, Floor- Defrost and Defrost air position.

MAX A/C-Level (B, D)

Hyundai Tucson: Manual climate control system. Air flow is directed toward the upper body and face. The MAX A/C mode is used

Air flow is directed toward the upper body and face. The MAX A/C mode is used to cool the inside of the vehicle faster.

In this mode, the air conditioning and the recirculated air position will be selected automatically.

Face-Level (B, D)

Hyundai Tucson: Manual climate control system. Air flow is directed toward the upper body and face. Additionally, each outlet

Air flow is directed toward the upper body and face. Additionally, each outlet can be controlled to direct the air discharged from the outlet.

Bi-Level (B, D, E, C)

Hyundai Tucson: Manual climate control system. Air flow is directed towards the face and the floor.

Air flow is directed towards the face and the floor.

Floor-Level (C, A, D, E)

Hyundai Tucson: Manual climate control system. Most of the air flow is directed to the floor, with a small amount of the air

Most of the air flow is directed to the floor, with a small amount of the air being directed to the windshield and side window defrosters.

Floor/Defrost-Level (A, C, D, E)

Hyundai Tucson: Manual climate control system. Most of the air flow is directed to the floor and the windshield with a small

Most of the air flow is directed to the floor and the windshield with a small amount directed to the side window defrosters.

Defrost-Level (A, D)

Hyundai Tucson: Manual climate control system. Most of the air flow is directed to the windshield with a small amount of air

Most of the air flow is directed to the windshield with a small amount of air directed to the side window defrosters.

Hyundai Tucson: Manual climate control system. Instrument panel vents

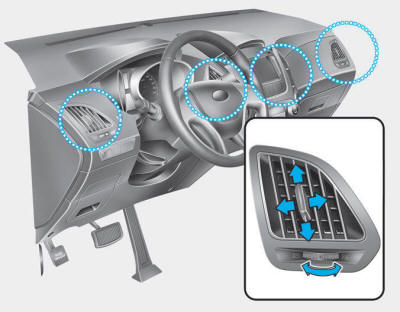

Instrument panel vents

The outlet vents can be opened or closed separately using the horizontal thumbwheel. To close the vent, rotate it left to the maximum position. To open the vent, rotate it right to the desired position.

Also, you can adjust the direction of air delivery from these vents using the vent control lever as shown.

Temperature control

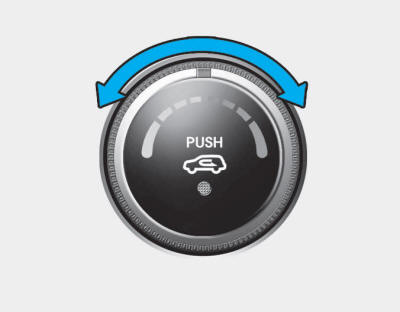

Hyundai Tucson: Manual climate control system. The temperature control knob allows you to control the temperature of the air

The temperature control knob allows you to control the temperature of the air flowing from the ventilation system.

To change the air temperature in the passenger compartment, turn the knob to the right position for warm air or left position for cooler air.

Air intake control

Hyundai Tucson: Manual climate control system. The air intake control button is used to select the outside (fresh) air position

The air intake control button is used to select the outside (fresh) air position or recirculated air position.

To change the air intake control position, push the control button.

Recirculated air position

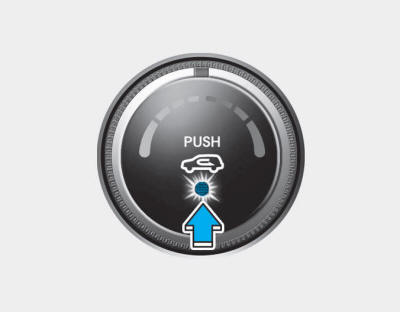

Hyundai Tucson: Manual climate control system. The indicator light on the button illuminates when the recirculated air position

The indicator light on the button illuminates when the recirculated air position is selected.

With the recirculated air bposition selected, air from the passenger compartment will be drawn through the ventilation system and heated or cooled according to the function selected.

Outside (fresh) air position

Hyundai Tucson: Manual climate control system. The indicator light on the button does not illuminates when the outside (fresh)

The indicator light on the button does not illuminates when the outside (fresh) air position is selected.

With the outside (fresh) air position selected, air enters the vehicle from outside and is heated or cooled according to the function selected.

✽ NOTICE

Prolonged operation of the heater in the recirculated air position (without air conditioning selected) may cause fogging of the windshield and side windows and the air within the passenger compartment may become stale. In addition, prolonged use of the air conditioning with the recirculated air position selected will result in excessively dry air in the passenger compartment.

WARNING

  • Continued use of the climate control system operation in the recirculated air position (without the air conditioning selected) may allow humidity to increase inside the vehicle which may fog the glass and obscure visibility.
  • Do not sleep in a vehicle with the air conditioning or heating system on. It may cause serious injury or death due to a drop in the oxygen level and/or body temperature.
  • Continued use of the climate control system operation in the recirculated air position can cause drowsiness or sleepiness, that may cause loss of vehicle control resulting in an accident. Set the air intake control to the outside (fresh) air position as much as possible while driving.

Fan speed control

Hyundai Tucson: Manual climate control system. The ignition switch must be in the ON position for fan operation.

The ignition switch must be in the ON position for fan operation.

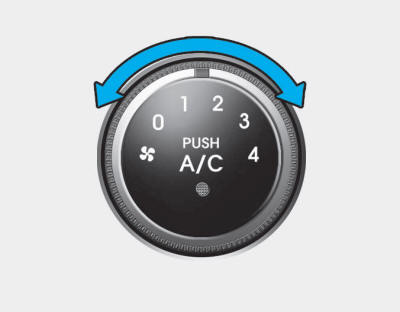

The fan speed control knob allows you to control the fan speed of the air flowing from the ventilation system.

To change the fan speed, turn the knob to the right for higher speed or to the left for lower speed.

To turn off the blowers

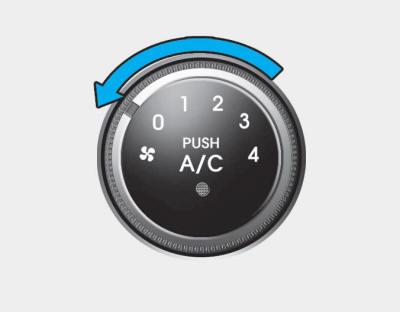

Hyundai Tucson: Manual climate control system. Setting the mode selection knob to the У0Ф position turns off the fan.

Setting the mode selection knob to the У0Ф position turns off the fan.

Air conditioning

Hyundai Tucson: Manual climate control system. Push the A/C button to turn the air conditioning system on (indicator light will

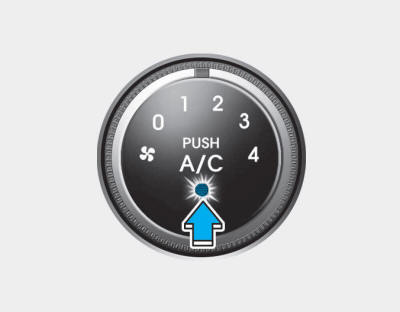

Push the A/C button to turn the air conditioning system on (indicator light will illuminate). Push the button again to turn the air conditioning system off.
